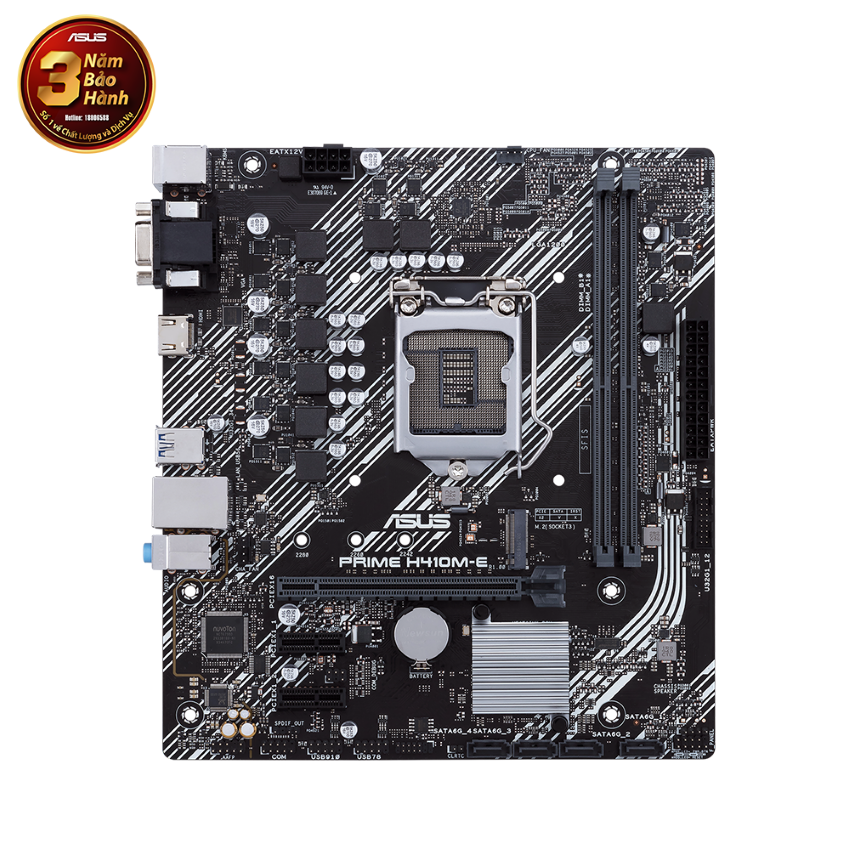

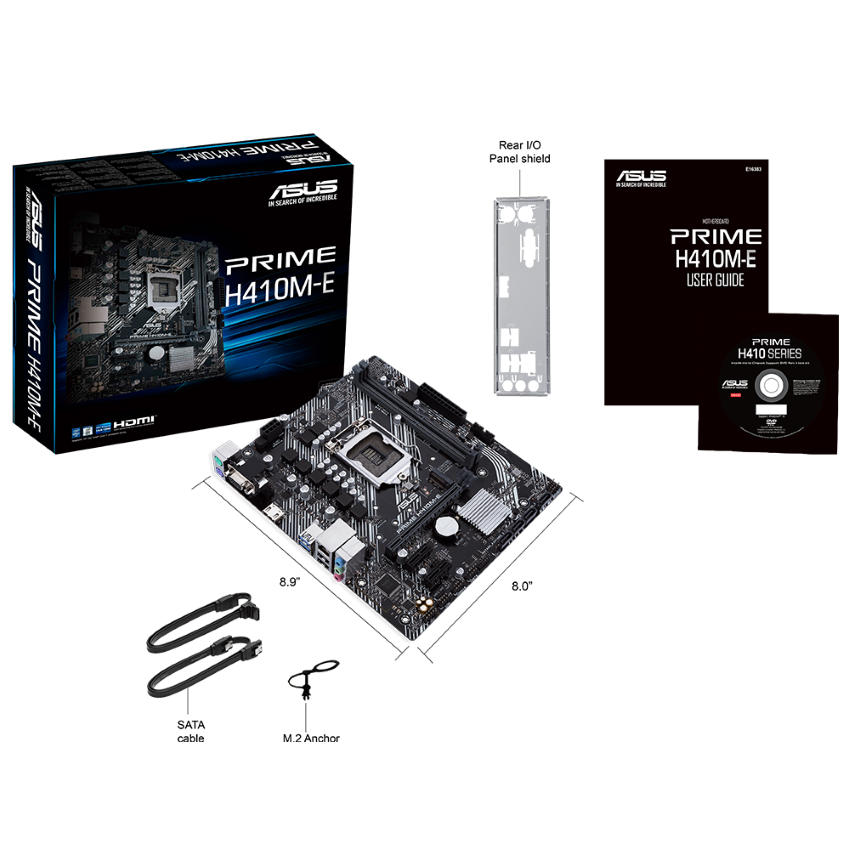

Mainboard ASUS PRIME H410M-E (Intel H410, Socket 1200, m-ATX, 2 khe Ram DDR4)

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

PRIME H410M-E

CPU hỗ trợ

Intel

Chipset

H410

RAM hỗ trợ

2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz

Khe cắm mở rộng

1 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x1

Ổ cứng hỗ trợ

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*1
4 x SATA 6Gb/s port(s)

Cổng kết nối (Internal)

1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector

Cổng kết nối (Back Panel)

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)

LAN / Wireless

Realtek® RTL8111H

Kích cỡ

mATX Form Factor
8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )
