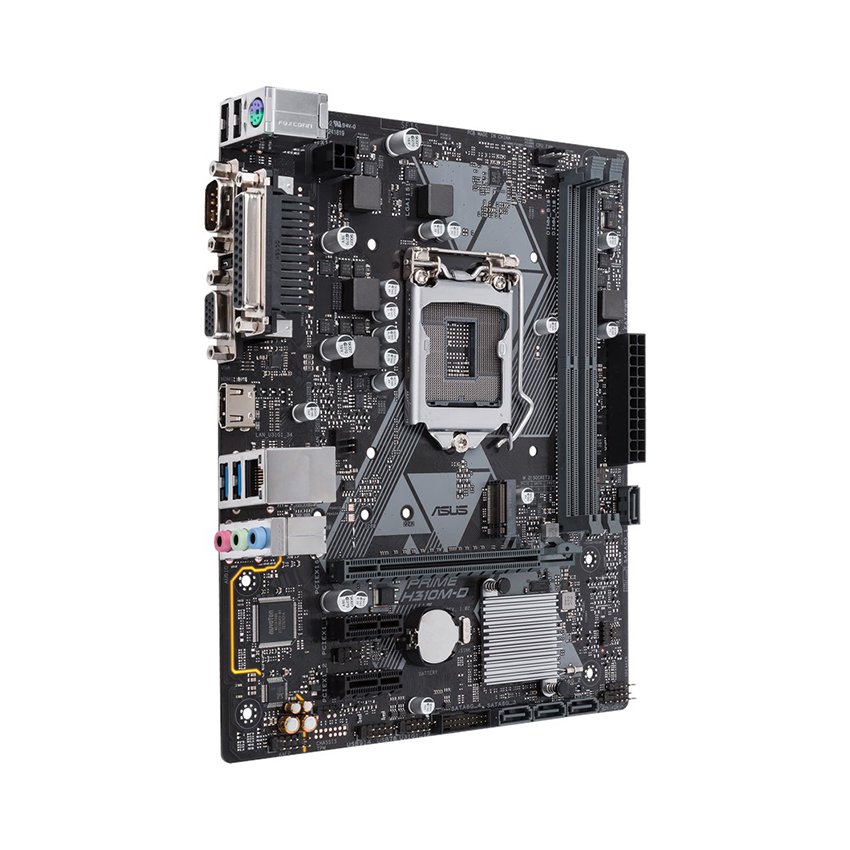

Mainboard ASUS PRIME H310M-D (Intel H310, Socket 1151, m-ATX, 2 khe RAM DDR4)

Tên gọi

ASUS PRIME H310M-D

CPU hỗ trợ

Intel® Socket 1151 for 8th Generation Core™ Processors

Chipset / Socket

Intel® B310

Bộ nhớ (RAM)

• 2 x DDR4 memory slots, support up to 32GB

• Supports DDR4 2666/ 2400/ 2133 MHz (by JEDEC)1

• Supports DDR4 2666/ 2400/ 2133 (by XMP OC)1

• Supports Dual-Channel mode

• Supports non-ECC, un-buffered memory

• Supports Intel® Extreme Memory Profile (XMP)

Công nghệ đa GPU

• Không hỗ trợ

Khe cắm mở rộng

• 1 x PCI Express 3.0 x16 Slots
• 2 x PCI Express 3.0 x1 Slots

LAN / Wireless

• RTL8111H Gigabit LAN controller

Âm thanh

• Realtek® ALC887 Codec

Cổng kết nối (Internal)

• 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
• 4 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x Chassis Fan connector(s) (1 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Clear CMOS jumper(s)
• 1 x System panel connector
• 1 x Speaker connector

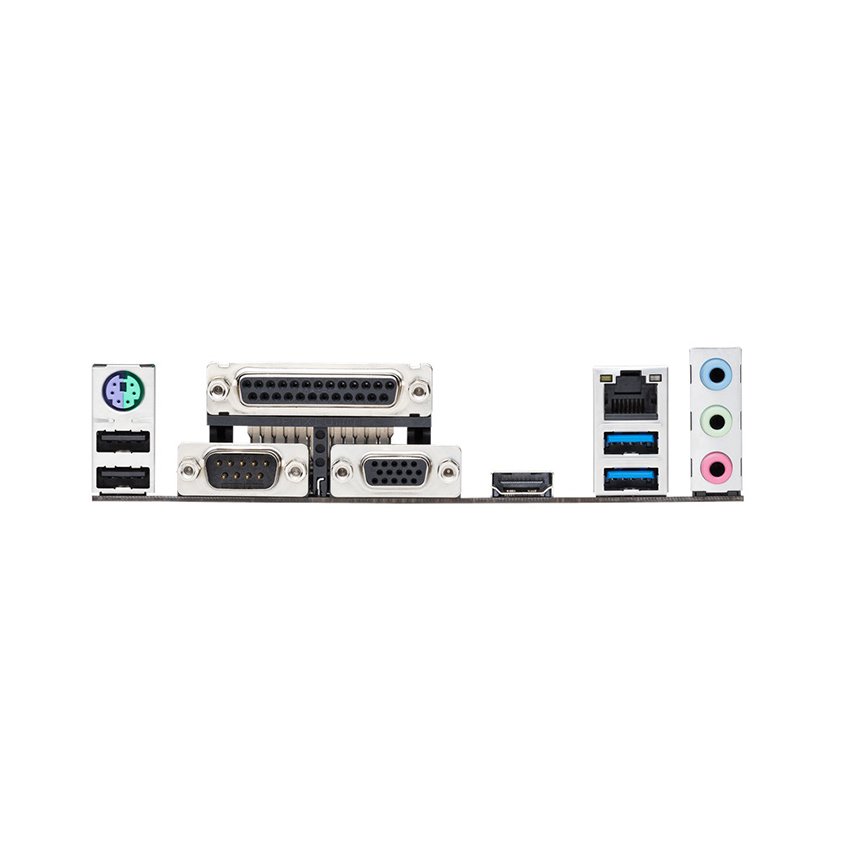

Cổng kết nối (Back Panel)

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 2 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps
• 2 x USB 2.0
• 1 x COM port(s)
• 1 x LPT port
• 3 x Audio jack(s)

Công nghệ độc quyền

• ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 4 Phase digital power design
• ASUS OptiMem：
- Optimem (Improved DDR4 stability)
• ASUS EPU :
- EPU
• ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- PC Cleaner
- File Transfer
• ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
• ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
• ASUS Q-Design :
- ASUS Q-DIMM

Phụ kiện đi kèm

• User's manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)
• 1 x M.2 Anchor
• 1 x SCD

Hệ điều hành khuyến nghị

• Windows® 10 64-bit

Chuẩn kích cỡ

• mATX Form Factor
