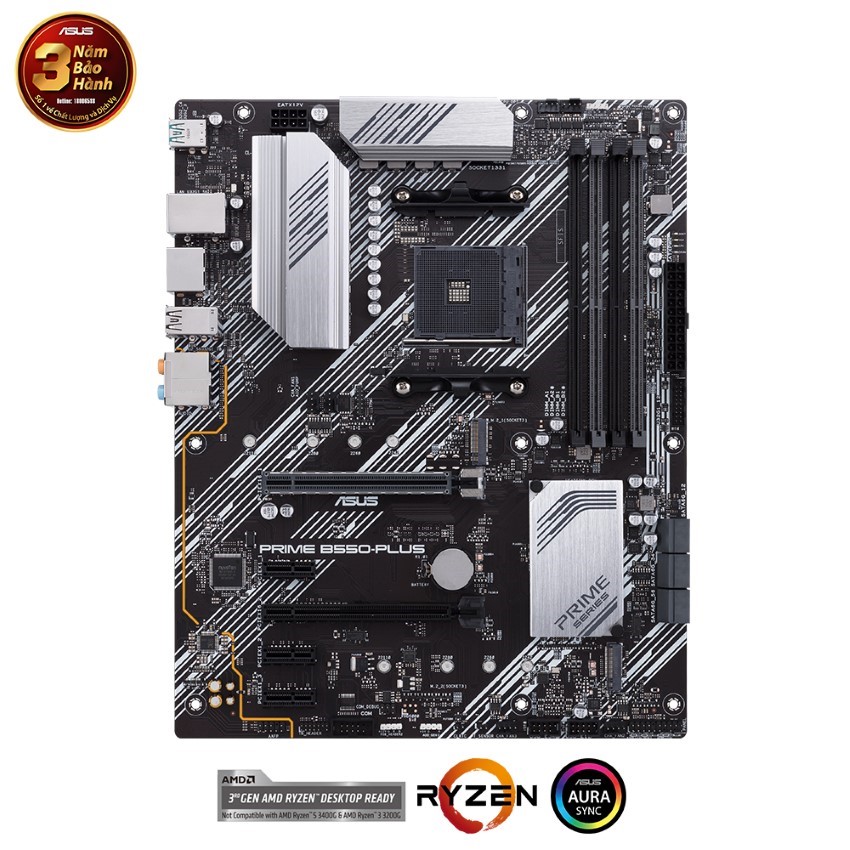

Mainboard ASUS PRIME B550-PLUS (AMD B550, Socket AM4, ATX, 4 khe RAM DRR4)

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

Prime B550-Plus

Socket

AM4

Hỗ trợ CPU

Supports AMD 3nd Generation Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ Processors

Chipset

AMD B550

Hỗ trợ RAM

4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture

Cạc đồ họa

Realtek® RTL8111H
ASUS LANGuard

Âm thanh

Realtek ALC887 7.1-Channel High Definition Audio CODEC

Cạc mạng

Realtek® GbE LAN chip (10/100/1000 Mbit)

Khe cắm trong

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD B550 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
6 x SATA 6Gb/s port(s), *2
Support Raid 0, 1, 10

Cổng giao tiếp ngoài

1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)

Kích thước

ATX
